ARCHIVED CONTENT / May 23, 2018

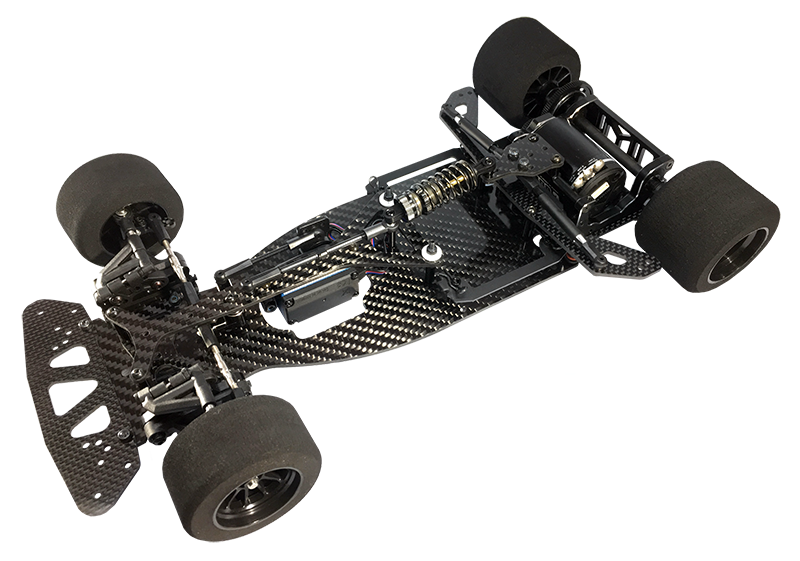

PARSEC-C Standard
The standard PARSEC-C was designed for a broad range of surfaces, from technical layouts to high-grip tracks. Adjustable track width and wheelbase support touring-car, GT and LMP bodies.
- Release
- May 23, 2018
- Original price
- JPY 42,800 (before tax)
- JAN
- 4543880931119
Features
- Low-centre-of-gravity floating upper deck
- Front suspension brace with adjustable track width and wheelbase
- High-rigidity 7075 duralumin and carbon steering knuckles
- Ackermann adjustment in 1 mm increments

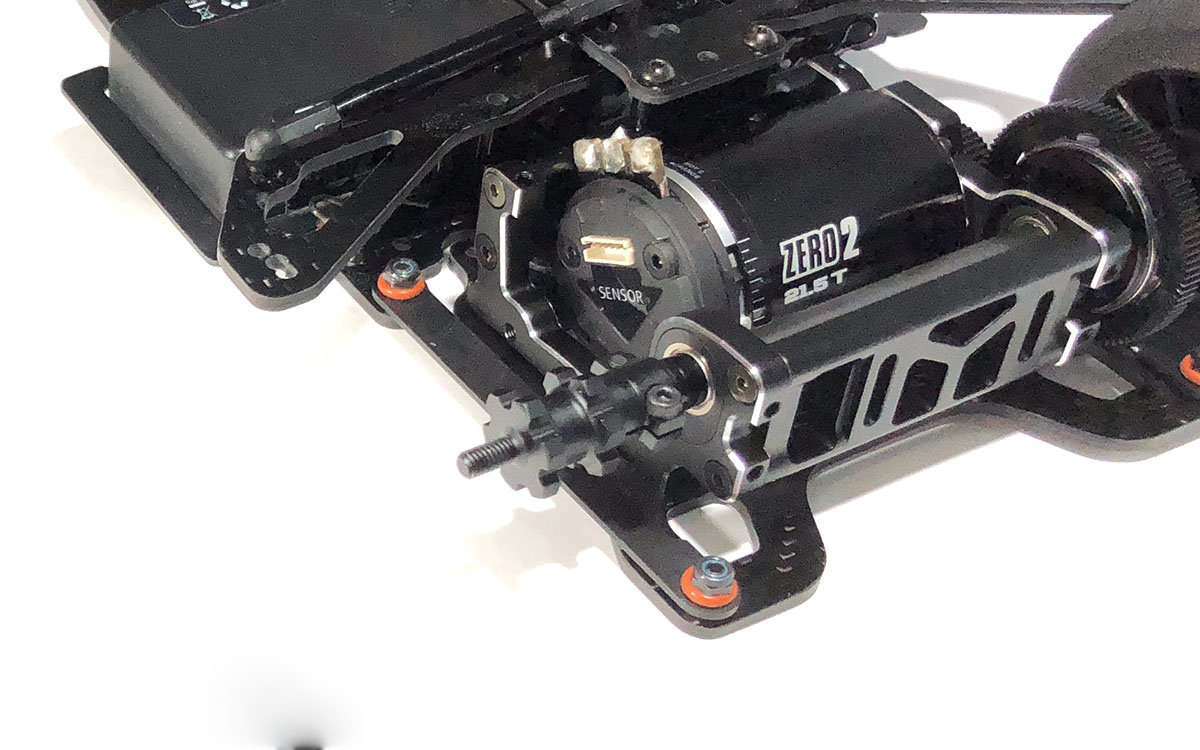

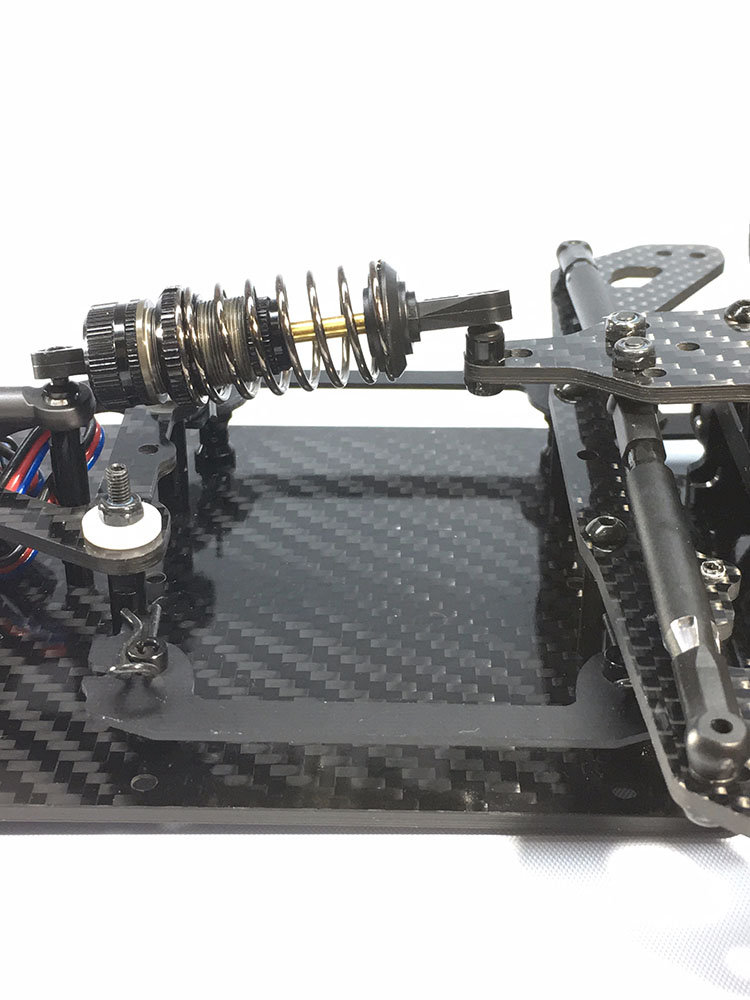

- FRP bar side links and roll-tube dampers
- 7075 motor mount
- Battery holders for short and full-size packs
Specifications
- Length 365 mm
- Width 183–196 mm
- Wheelbase 256–261 mm
- Approximate running weight 990 g with a 2S short LiPo
Documents
Open PDF parsec-c-standard-manual.pdf ↓Open PDF parsec-c-standard-parts-list.pdf ↓Open PDF parsec-c-setting-sheet.pdf ↓ARCHIVE IMAGES
5 IMAGES / 1 FILM
